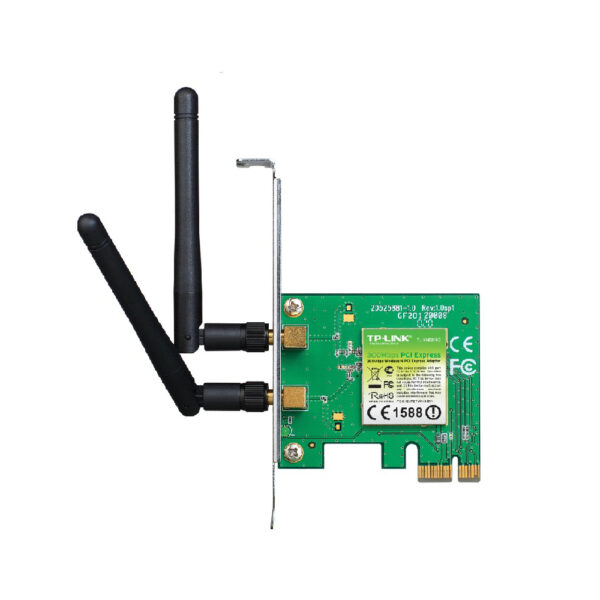

Description Features Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls 2T2R MIMO� delivers greater throughput at range versus conventional 1T1R Easily setup a highly secured wireless link with QSS software embedded Supports 64/128 WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X Supports Windows 7 32/64bit, Windows XP 32/64bit, Vista 32/64bit Supports ad-hoc and infrastructure mode Bundled utility provides quick & hassle free installation Seamlessly compatible with 802.11n/b/g products HARDWARE FEATURES Interface PCI Express(x1) Dimensions ( W x D x H ) 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm) Antenna Type Detachable Omni Directional (RP-SMA) Antenna Gain 2dBi WIRELESS FEATURES Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.400-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) EIRP 20dBm(EIRP) Reception Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -73dBm@10% PER 54M: -73dBm@10% PER 11M: -89dBm@8% PER 6M: -87dBm@10% PER 1M: -90dBm@8% PER Wireless Modes Ad-Hoc / Infrastructure mode Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM OTHERS Certification CE, FCC, RoHS Package Contents Wireless Adapter 2x Detachable Omni directional antenna Resource CD Quick Installation Guide System Requirements Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits) Environment Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
