$ 92.02

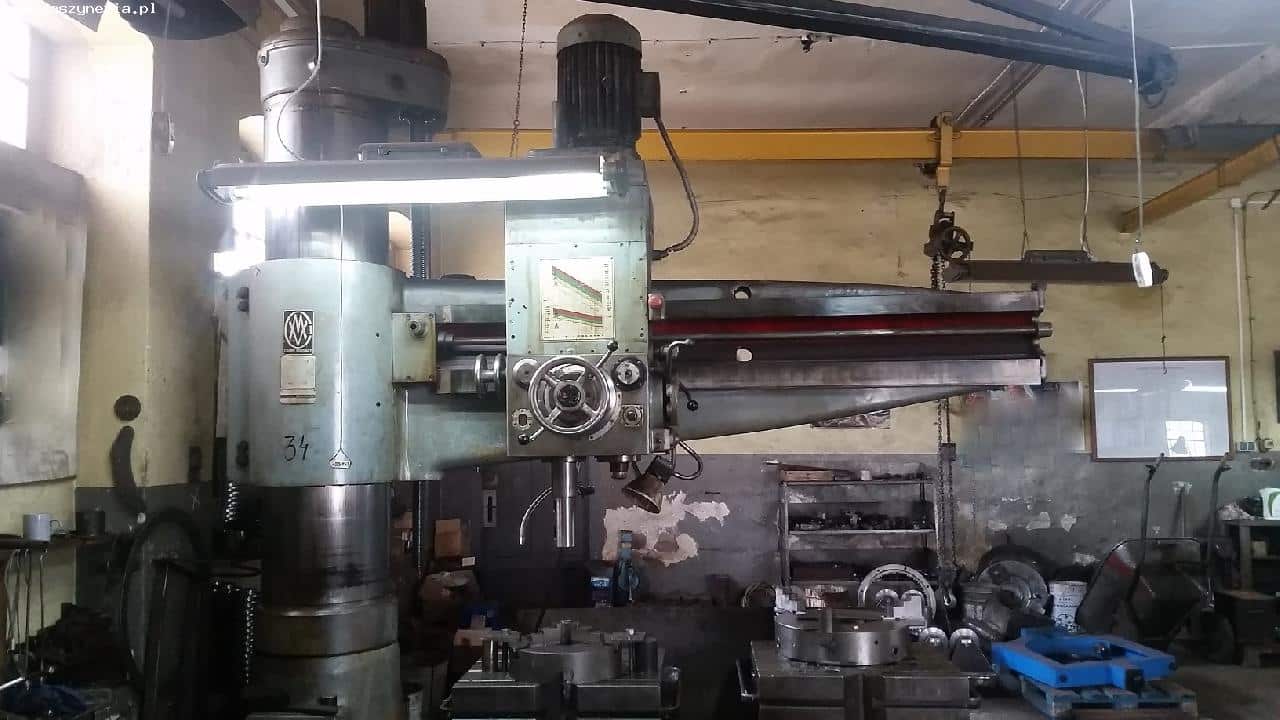

The CSEPEL RFH 75/2000 Radial Drilling Machine was built in Hungary by Csepel-Müvek in 1988. The maximum drilling diameter in solid material is 90 mm (cast iron) or 75 mm (steel). However, the largest drilling diameter with pre-drilling in steel is 125 mm, and in cast iron is 140 mm. Characteristics of CSEPEL RFH 75/2000 drill – the largest drilling diameter in solid material, in steel: fi 75 mm – the largest drilling diameter in solid material, in cast iron: fi 90 mm – the largest drilling diameter with preliminary drilling in steel: fi 125 mm – the largest drilling diameter with initial drilling in cast iron: fi 140 mm – vertical movement of the arm on the column: 950 mm – horizontal displacement of the head on the arm: 2000 mm – spindle speed range (number 21): 19-1900 rpm. – spindle feed range (number of 12): 0.047-2 mm / rev. – internal spindle taper: No. 5 Morse – maximum extension of the spindle from the head: 380 mm – dimensions (L x W x H): 3220 x 1130 x 3400 mm – engine power: 15 kW – radial weight: 7030 kg
