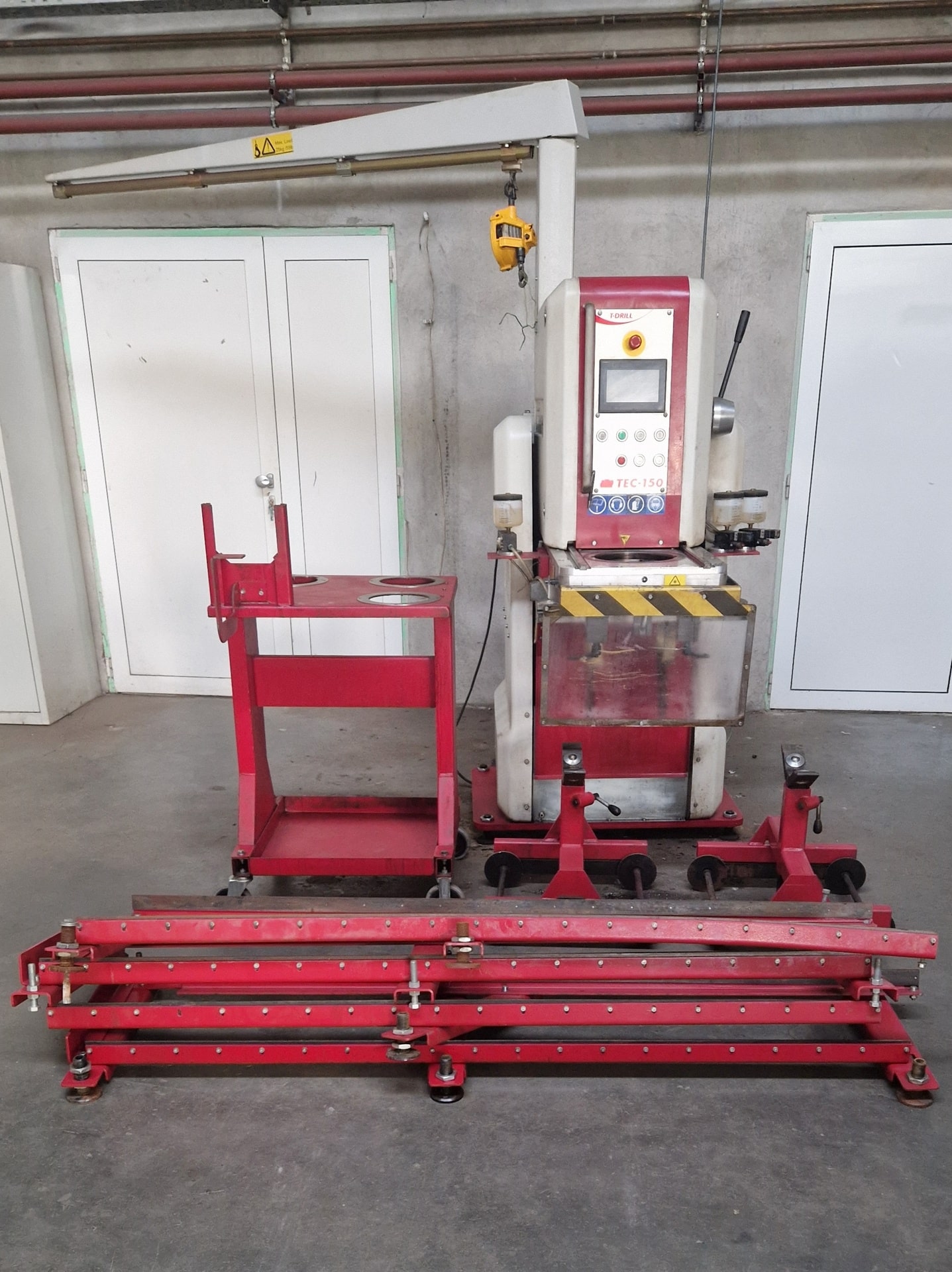

T-DRILL TEC-150 HD collaring machine built in 2016 in Finland for the precise machining of tubes with a maximum diameter of 406 mm within a single workstation. The machining process consisting of three cycles (pilot hole milling, collar forming, collar cutting) is performed fully automatically via a touchscreen control panel, saving valuable time. During machining, a special centring device establishes the position of the pilot hole in the correct place on the pipe, while a support holds it in the required position during the performed operation. All this makes the T-DRILL TEC 150 collaring machine the right choice for precision collar forming in tubes made of e.g. aluminium, stainless steel and copper. The total weight of the machine is 1000 kg. Technical specifications of the T-DRILL TEC-150 HD collaring machine maximum tube diameter: 406 mm minimum tube diameter: 33.7 mm maximum collar diameter: 219.1 mm minimum collar diameter: 21.3 mm positioning device to determine the correct position of the pilot hole on the tube supports to hold the tube in the required position during machining measuring table collaring head ⌀21.3 mm; ⌀141.3 mm; ⌀168.3 mm; ⌀219.1 mm tube clamp ⌀168.3 mm; ⌀204 mm; ⌀219.1 mm; ⌀323.9 mm ring clamp ⌀60.3 mm; ⌀ 88.9 mm; ⌀104 mm; ⌀125 mm collaring boss and pin set ⌀26.9 mm; ⌀33.7 mm; ⌀42.4 mm; ⌀48.3 mm; ⌀60.3 mm; ⌀76.1 mm; ⌀88.9 mm; ⌀114.3 mm trimming device chamfering tool end mill (10 pcs.) touch screen control panel power: 6 kW air pressure: 600 kPa power supply: 3x 400 V; 50 Hz weight of machine: 1000 kg
